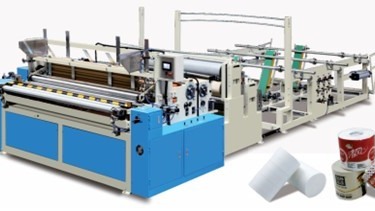

Tss220-Automatictoiletroll Stop Start Rewinder
Toilet Paper production Machines
Machine Specifications
- Raw Material Width: 1575 Mm, 2000 Mm, 2600 Mm, 2800 Mm, 2900 Mm, 3000 Mm (Jumbo Roll Width Must Be Specified At The Time Of Order)
- Finished Roll Diameter: Φ70-135 Mm (Tightness Adjustable)
- Finished Roll Core Diameter : Φ32-50 Mm
- Raw Material Diameter: Φ1100 Mm (Other Sizes Available Upon Request)
- Core Size Of Jumbo Roll: Φ76.2 Mm (Other Sizes Available Upon Request)
- Perforation Pitch: Please Specify (e.g., 110 Mm, 220 Mm With 4 Perforating Blades)
- Performance:
- Machine Speed: 200 m/Min
- Control System:
- Parameter Setting: Touch Screen Operation (Lcd Panel)
- Programmable Controller: Mitsubishi Plc
Optional Features:
- Unwind Stand
- Finished Roll Rewinding
- Embossing Unit: Single Or Double Embossing, Steel-To-Steel
- Edge Embossing Unit: Steel-To-Steel
- Layer Options:
- Ply Configuration: 1-3 Layers (To Be Specified By Client)
- Coreless Rewinding System: Included
Machine Specifications: 130
- Max Width Of Roll: 3000 Mm (Jumbo Roll Width To Be Specified At The Time Of Order)
- Performance:
- Design Speed: 130 Cuts/Min (Per Cut)
- Production Speed: 90 Cuts/Min (Varies Based On Roll Length)
- Feeding And Cutting System:
- Roll Feeding: Controlled By a Motor-Driven Conveyor
- Cutting Method: Band Saw Cutting
- Feeding Method: Cylinder-Assisted Feed For Smooth Operation
- Cutting Length Adjustment: Adjustable Range From 80 Mm To 280 Mm With a Precision Tolerance Of ±1 Mm
- Grinding System:
- Grinding Method: Automatic Sharpening System With Adjustable Parameters Via Touchscreen
- Grinding Wheel Feeding: Automated For Efficiency
- Finished Product Quality: Ensures No Pollution Or Damage To The Paper Surface, Maintaining Core Shape After Cutting
- Power And Transmission:
- Power Supply: Standard Industrial Motor
- Transmission System:
- Servo Motor Control With Timing Belt
- Green Circular Belt And Flat Belt Transmission With a Reduction Gearbox
- Output:
- Roll Discharge: Efficient Roll Output Handling
