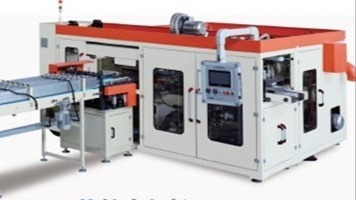

Fw35C Model Specifications

• Design Speed: 35 Bundles/Min
•  Packing Specification:
• Length: 150–500 Mm
• Width: 130–430 Mm
• Height: 90–105 Mm
• Pre-Made Bag Material:
• Material: Cpp, Pe Film, Matte Film, Composite Film
• Features: Must Have Double-Sided Heat-Sealing Capability; Handle Hole Is a Through Hole; Good Static Elimination With No Adhesion Phenomenon
• Single Layer Thickness: 40–60 µm
• Packing Size: Need To Be Controlled Within The Scope Of 1X3, 2X3, 2X4, 205, 2X6 (Must Be Controlled Within The Scope Of The Total Length)
• Pre-Made Bag Storage: ≤1000 Pieces
• Machine Dimensions:
• Length: 7630 Mm
• Width: 3900 Mm
• Height: 1980 Mm
• Weight: Approx. 3000 Kg
• Total Power: 28.5 Kw (Including Sealing Heater Power Of 2 Kw)
• Sealing Shaping Mode:
• Sealing Mode: Negative Pressure Mold Forming
• Waste Management: Remaining Material Cut To 25–30 Mm; Waste Material Is Automatically Sucked Into The Waste Film Box

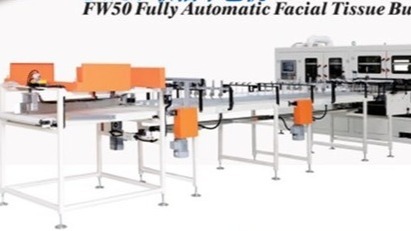

Fw50 Model Specifications

• Design Speed: 50 Bundles/Min
•  Packing Specification:
• Length: 180–600 Mm
• Width: 120–420 Mm
• Height: 90–160 Mm
• Pre-Made Bag Thickness:
• Single Layer Thickness: 40–60 µm
• Packing Size: Controlled Within The Range Of 183, 184, 185, 203, 204, 205, 26, 303, 304, 305, 306 (Must Be Controlled Within The Scope Of The Total Length)
• Pre-Made Bag Storage: ≤1400 Pieces
• Machine Dimensions:
• Length: 10146 Mm
• Width: 4243 Mm
• Height: 2004 Mm
• Total Power: 33 Kw (Including Sealing Heater Power Of 2 Kw)
